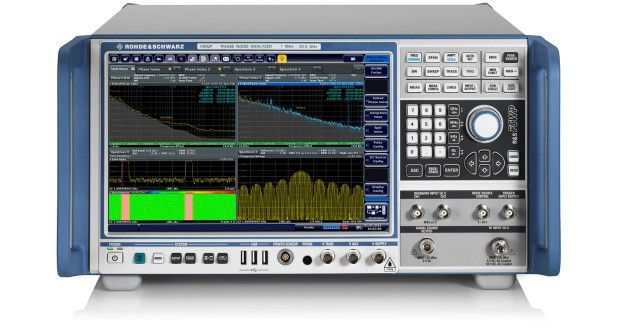

FSWP相位噪声分析仪和VCO测试仪结合极低噪声内源和互相关技术，实现了相位噪声测量的高灵敏度。因此，即便测量高度稳定的源 (例如在雷达应用中的源) 也只需几秒钟。脉冲信号测量、附加相位噪声 (包括脉冲) 特性描述以及集成化信号和频谱分析等附加选件使此分析仪成为一台出色的测试仪器。
主要特点
- 频率范围：1 MHz 至 8 GHz/26.5 GHz
- 互相关和极低噪声内部参考源实现相位噪声测量的高灵敏度
1 GHz 载波频率和 10 kHz 频偏时，典型相位噪声值为 –172 dBc (1 Hz)
10 GHz 载波频率和 10 kHz 频偏时，典型相位噪声值为 -153 dBc (1 Hz)
- 调幅噪声和相位噪声同步测量
-脉冲源相位噪声一键测量
- 内部源适用于测量附加相位噪声，包括脉冲信号的相位噪声
- 信号与频谱分析仪以及相位噪声分析仪集成在一个盒子中
信号与频谱分析仪，10 Hz 至 8 GHz/26.5 GHz
低显示平均噪声电平 (DANL) –156 dBm (1 Hz)（未打开噪声消除功能）和高三阶交调（TOI，典型值为 25 dBm）下，具有高动态范围
80 MHz 信号分析带宽
总测量不确定度：在 3.6 GHz 以下，小于 0.2 dB，在 8 GHz 以下，小于 0.3 dB
触摸屏操作
12.1" 超大显示屏，可同时查看多个测量窗口
多个测量应用可并行运行和显示
- 高速测量
- 低噪声内部直流源，用于 VCO 特性测量
Specifications
| Base unit | ||
| Frequency | ||
| Frequency range, RF input | ||
| Phase noise, amplitude noise measurement | R&S?FSWP8 | 1?MHz to 8?GHz |
| ? | R&S?FSWP26 | 1?MHz to 26.5?GHz |
| ? | R&S?FSWP50 | 1?MHz to 50?GHz |
| Phase noise measurement | ? | ? |
| Measurement results | ? | SSB phase noise, spurious signals, integrated RMS phase deviation, residual FM, time jitter |
| Offset frequency range | input signal ≤ 1?GHz | 10?mHz to 30?% of carrier frequency |
| ? | input signal > 1?GHz | 10?mHz to 300?MHz |
| Phase noise sensitivity with R&S?FSWP-B60 option (no. of correlations = 1, start offset = 1?Hz)1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 10?MHz | ≥ 30?MHz |
| 10?MHz | –96 | –128 | –140 | –158 | –170 | –170 | –170 | – | – |
| 100?GHz | –76 | –108 | –136 | –163 | –170 | –173 | –175 | –175 | –175 |
| 1?GHz | –56 | –88 | –116 | –143 | –166 | –173 | –173 | –173 | –173 |
| 3?GHz | –46 | –78 | –106 | –133 | –156 | –158 | –163 | –170 | –170 |
| 7?GHz | –39 | –71 | –99 | –130 | –152 | –153 | –157 | –166 | –166 |
| 10?GHz | –36 | –68 | –96 | –128 | –147 | –150 | –155 | –173 | –173 |
| 16?GHz | –32 | –64 | –92 | –124 | –143 | –146 | –151 | –170 | –170 |
| 26?GHz | –28 | –60 | –88 | –120 | –139 | –142 | –147 | –166 | –166 |
| 50?GHz | –22 | –54 | –82 | –114 | –133 | –136 | –141 | –160 | –160 |
| Phase noise sensitivity with R&S?FSWP-B61 option (no. of correlations = 1, start offset = 1?Hz)1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 10?MHz | ≥ 30?MHz |
| 10?MHz | –108 | –130 | –142 | –160 | –170 | –170 | –170 | – | – |
| 100?MHz | –92 | –115 | –140 | –166 | –170 | –173 | –175 | –175 | –175 |
| 1?GHz | –72 | –95 | –120 | –150 | –166 | –173 | –173 | –173 | –173 |
| 3?GHz | –62 | –85 | –110 | –140 | –156 | –158 | –163 | –170 | –170 |
| 7?GHz | –55 | –78 | –103 | –133 | –152 | –153 | –157 | –166 | –166 |
| 10?GHz | –52 | –75 | –100 | –133 | –152 | –153 | –157 | –173 | –175 |
| 16?GHz | –48 | –71 | –96 | –129 | –148 | –149 | –153 | –170 | –171 |
| 26?GHz | –44 | –67 | –92 | –125 | –144 | –145 | –149 | –166 | –167 |
| 50?GHz | –38 | –61 | –86 | –119 | –138 | –139 | –143 | –160 | –161 |
| Amplitude noise measurement | |||||||||
| Offset frequency range | input signal ≤ 100?MHz | 10?mHz to 30?% of carrier frequency | |||||||
| ? | input signal > 100?MHz | 10?mHz to 30?MHz | |||||||
| AM noise sensitivity1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 10?MHz | 30?MHz |
| 1?GHz | –105 | –120 | –135 | –150 | –158 | –165 | –165 | –165 | –165 |
| Residual phase noise measurement (R&S?FSWP-B64 option), internal source | |||||||||
| Signal source | |||||||||
| Frequency range | R&S?FSWP8 | 10?MHz to 8?GHz | |||||||
| ? | R&S?FSWP26 | 10?MHz to 18?GHz | |||||||
| ? | R&S?FSWP50 | 10?MHz to 18?GHz | |||||||
| Additive phase noise measurement | |||||||||
| Offset frequency range | input signal ≤ 100?MHz | 10?mHz to 30?% of carrier frequency | |||||||
| ? | input signal > 100?MHz | 10?MHz to 30?MHz | |||||||
| AM noise sensitivity1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 3?MHz | |
| 1?GHz | –115 | –123 | –137 | –147 | –160 | –165 | –165 | –161 | |
| 10?GHz | –85 | –104 | –120 | –138 | –148 | –154 | –164 | –160 | |
1)?Values in dBc (1?Hz).
| R&S?FSWP-B1 signal and spectrum analyzer option | ||
| Frequency range | R&S?FSWP8 | 10?Hz to 8?GHz |
| ? | R&S?FSWP26 | 10?Hz to 26.5?GHz |
| ? | R&S?FSWP50 | 10?Hz to 50?GHz |
| Aging per year | ? | ±1 × 10?–7/year |
| ? | with R&S?FSWP-B4 option | ±3 × 10?–8/year |
| Resolution bandwidths | standard filter | 1?Hz to 10?MHz with R&S?FSWP-B8 option: 20?MHz, 50?MHz, 80?MHz additionally |
| ? | RRC filter | 18?kHz (NADC), 24.3?kHz (TETRA), 3.84 MHz (3GPP) |
| ? | channel filter | 100?Hz to 5?MHz |
| ? | video filter | 1?Hz to 10?MHz |
| I/Q demodulation bandwidths | ? | 10 MHz |
| ? | with R&S?FSWP-B80 option | 80 MHz |
| Displayed average noise level (DANL) | 2 GHz | typ. –150?dBm (1?Hz) |
| ? | 8 GHz | typ. –150?dBm (1?Hz) |
| ? | 20 GHz | typ. –145?dBm (1?Hz) |
| ? | 40 GHz | typ. –137?dBm (1?Hz) |
| DANL with preamplifier | 8 GHz | typ. –162?dBm (1?Hz) |
| ? | 20 GHz | typ. –160?dBm (1?Hz) |
| ? | 40 GHz | typ. –156?dBm (1?Hz) |
| Phase noise | 1?GHz carrier frequency, 10?kHz offset | typ. –138?dBm (1?Hz) |
| Total measurement uncertainty | < 8?GHz | < 0.4?dB |
